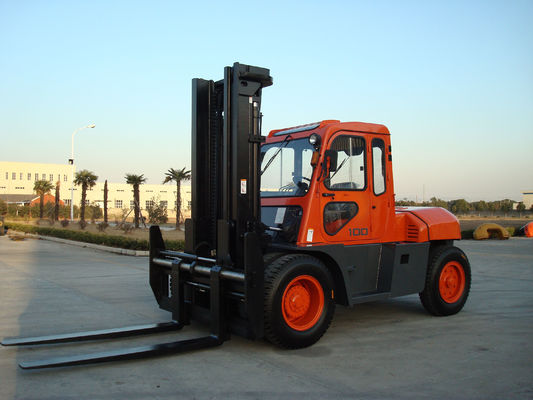

ISUZU Engine 6BG1 Diesel Powered Forklift 10 Ton Forklift With Cab Wenyang Machinery

I'm Online Chat Now

ISUZU Engine 6BG1 Diesel Powered Forklift 10 Ton Forklift With Cab Wenyang Machinery

ISUZU Engine 6BG1 Diesel Powered Forklift 10 Ton Forklift With Cab Wenyang Machinery
ISUZU Engine 6BG1 Diesel Powered Forklift 10 Ton Forklift With Cab Wenyang Machinery ISUZU Engine 6BG1 Diesel Powered Forklift 10 Ton Forklift With Cab Wenyang Machinery ISUZU Engine 6BG1 Diesel Powered Forklift 10 Ton Forklift With Cab Wenyang Machinery

Large Image :  ISUZU Engine 6BG1 Diesel Powered Forklift 10 Ton Forklift With Cab Wenyang Machinery

Product Details:
Place of Origin: China
Brand Name: Wenyang Machinery
Certification: CE ,ISO ,CQC,CNAS
Model Number: FD100T
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: container
Delivery Time: 15 working days
Supply Ability: 1000unit/month
Detailed Product Description
Type: Powered Pallet Truck Rated Load: 10T
Lifting Height: 3000mm Condition: New
Load Center: 600mm Fork Dimension: 1220*175*75mm
Engine Brand:: Chaochai 6102 Or Isuzu 6bg1 Warranty: 18 Months Or 2000 Hours
High Light:

diesel operated forklift

,

diesel engine forklift truck

Wenyang Machinery brand forklift 10ton diesel forklift truck with cab

FD100T Technology Specification

Model     FD100T
Load capacity   kg 10000
Load center   mm 600
Power unit     Diesel
Operator type     Driver/seat
Tire type Front/rear   Pneumatic
Wheel Front/rear   4/2
Max. lifting height   mm 3000
Free lift   mm 205
Fork size L*W*T mm 1220*175*75
Tilt range Mast forward/backward deg 6/12
Overall length(without fork)   mm 4255
Total width   mm 2245
Mast height (fork lowering)   mm 2850
Overall height fork raised With backrest mm 4330
Height to head guard   mm 2560
Turning raduis(outside)   mm 3900
Front face of fork to front axle   mm 710
Min. right angle stacking aisle pallet size :1100×1100 add clearence mm 6250

Speed
Max Travelling full/no load km/h 24/30
Lifting full/no load mm/s 390/410
Lowering full/no load mm/s 470/340
Max.drawbar pull full/no load kg 5850/3200
Gradeability at 1.6km/h full load % 22
Max. Gradeability full/no load % 24/20
Truck weight   kg 12450
Weight distribution Full load front/rear kg 20160/2290
No load front/rear kg 5480/6970

Tires
Number front/rear 4/2
Model front axle 9.00x20-14PR
rear axle 9.00x20-14PR
Wheelbase   mm 2800
Tread Front/rear mm 1600/1700
Ground clearence At lowest point(mast) mm 245
Frame mm 320
Brake Service brake   power brake
Parking brake   Mechanical-hand lever
Battery Voltage/capacity V/AH 2x12V-80AH

Engine
Model   ISUZU 6BG1
Rated power PS 112/2000
Rated torque kg-m 42.5/1500
Number of cylinders   6
Placement L 6.494
Fuel tank capacity L 140
Transmission shift stage(front/rear-type)   2-2 power shift T/M
Operating pressure Hydraulic system pressure kg/cm² 200

ISUZU Engine 6BG1 Diesel Powered Forklift 10 Ton Forklift With Cab Wenyang Machinery 0
