| Rated Capacity: | 3.5TON | Bucket Capacity: | 1.8m3 |
|---|---|---|---|
| Engine: | Weichai Deutz | Operating Weight: | 11620kg |
| Engine Power: | 105kW/2200rpm | ||
| High Light: | front end shovel loader,lonking wheel loader |
||
POWERFUL WEICHAI DEUTZ ENGINE
LONKING TRANSMISSION
LONKING AXLES
JOYSTICK CONTROL
AC+ROPS&FOPS CABIN
VARIETY WITH ATTACHMENT
CONVENIENT MAINTENANCE
RATED POWER:105kW/2200rpm
BUCKET CAPACITY:1.8m³
RATED PAYLOAD:3500kg
OPERATING WEIGHT:11620kg

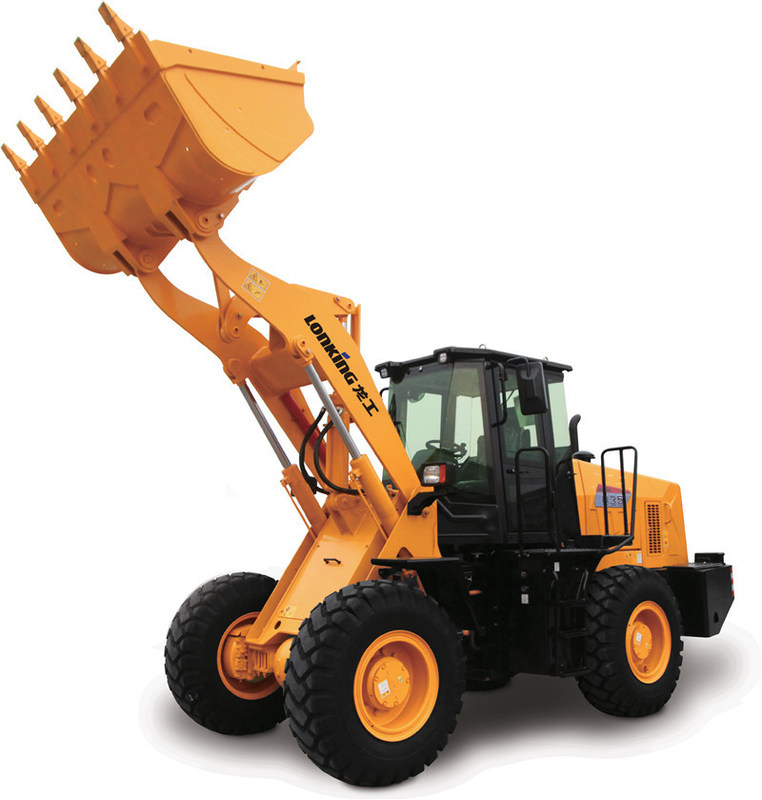

| Model | CDM835 (Weichai) |
| Bucket Capacity(m³) | 1.8-2.5 |
| Rated Payload (kg) | 3500 |
| Rated Power(kw/rpm) | 105/2200 |
| Operating Weight (kg) | 11620 |
| Traction Force(kN) | 106 |
| Breakout Force (kN) | 103 |
| Dump Clearance at Max.Lift(mm) | 2806 |
| STANDARD EQUIPMENT | |
| WEICHAI Engine | Single-lever(Joystick) Control |
| LONKING Transmission | Standard Lift&Bucket (1.8m³) |
| Electronic Powershift Control | ROPS&FOPS Cabin |
| LONKING Axles | Air Conditioner |
| Flexible Shaft Controlled Caliper Brake(Parking Brake) | Radio&MP3 |
| LCD Display | |
| OPTIONAL EQUIPMENT | |
| Cold Starting (-35℃) | Quick-change Bucket(1.7m³) |
| Oil-bath Air Filter | Bucket 1(2.0m³) |
| 17.5R25 ★★ L-3 TL | Enlarged Bucket(2.3m³) |
| 3rd Spool for Auxiliary Function | Coal Bucket(2.5m³) |
| Double-lever(Joystick) Control for Lift&Tilt&Auxiliary Function | 3 Piece Cutting Edge,Bolt-on Type Bucket |
| Sliding Cabin Window | Log Fork |
| Electric Heating Rear Window | Grasping Pitchfork |
| Lockable Oil Tank Cap | Side Dump Bucket |
| Rear View Camera | Fork(Quick-change Only) |
| Pressure Testing Connector | 4in1 Bucket(Quick-change Only) |
| High Lift &Additional Counterweight | Snow Blade(Quick-change Only) |
| Quick-change Coupler | Mechanical Powershift Control |
