2 Stage Full Free Mast 5 Ton Forklift Container Lifting Forklift For Warehouse

I'm Online Chat Now

2 Stage Full Free Mast 5 Ton Forklift Container Lifting Forklift For Warehouse

2 Stage Full Free Mast 5 Ton Forklift Container Lifting Forklift For Warehouse
2 Stage Full Free Mast 5 Ton Forklift Container Lifting Forklift For Warehouse 2 Stage Full Free Mast 5 Ton Forklift Container Lifting Forklift For Warehouse 2 Stage Full Free Mast 5 Ton Forklift Container Lifting Forklift For Warehouse 2 Stage Full Free Mast 5 Ton Forklift Container Lifting Forklift For Warehouse

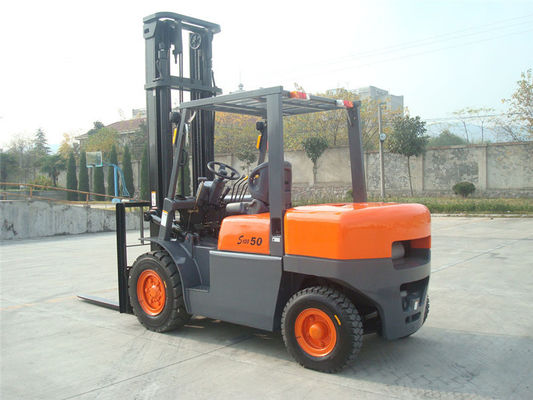

Large Image :  2 Stage Full Free Mast 5 Ton Forklift Container Lifting Forklift For Warehouse

Product Details:
Place of Origin: China
Brand Name: Wenyang Machinery
Certification: CE ,ISO ,CQC,CNAS
Model Number: FD50TS
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: 18500-20000 USD
Packaging Details: 2GP container
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 1000unit/month
Detailed Product Description
Type: Diesel Container Working Forklift Rated Load: 5T
Lifting Height: 2000mm Condition: New
Load Center: 500mm Fork Dimension: 1070*150*50
Engine Brand:: YTO 4108 Warranty: 18 Months Or 2000 Hours
Optional: 2 St Age Full Free Mast
High Light:

diesel operated forklift

,

counterbalance lift truck

5ton diesel container working forklift with 2 stage full free mast



Model     FD50TS
Load capacity   kg 5000
Load center   mm 500
Power unit     Diesel
Operator type     Driver/seat
Tire type Front/rear   Pnenumatic
Wheel Front/rear   2/2
Max. lifting height   mm 3000
Free lift   mm 140
Fork size L*W*T mm 1070*150*50
Tilt range Mast forward/backward deg 6/12
Overall length(without fork)   mm 3100
Total width   mm 1485
Mast height (fork lowering)   mm 2300
Overall height fork raised With backrest mm 4190
Height to head guard   mm 2270
Turning raduis(outside)   mm 2780
Front face of fork to front axle   mm 560
Min. right angle stacking aisle pallet size :1100×1100 add clearence mm 4585



Speed

Max Travelling full/no load km/h 18/19
  Lifting full/no load mm/s 410/430
  Lowering full/no load mm/s 380/340
Max.drawbar pull full/no load kg 4500/2200
Gradeability at 1.6km/h full load % 25
Truck weight   kg 7230
Weight distribution Full load front/rear kg 10780/1290
  No load front/rear kg 2780/4450



Tires

Number front/rear 2/2
  Model front axle 300-15-18PR
    rear axle 7.00-12-12PR
Wheelbase   mm 2000
Tread Front/rear mm 1180/1190
Ground clearence At lowest point(mast) mm 100
  Frame mm 240
Brake Service brake   power brake
  Parking brake   Mechanical-hand lever
Battery Voltage/capacity V/AH 2x12V-80AH





Engine

Model   YTO4108
  Rated power PS 57/2200
  Rated torque kg-m 297/1600
  Number of cylinders   4
  Placement L 4.578
Fuel tank capacity   L 80
Transmission shift stage(front/rear-type)   2-1power shift T/M
Operating pressure Hydraulic system pressure kg/cm² 200



2 Stage Full Free Mast 5 Ton Forklift Container Lifting Forklift For Warehouse 0
