Product Details:
Payment & Shipping Terms:
|
| Drive Model: | 4 Wheel Drive | Engine Brand: | YUNNEI Turbocharged Engine |
|---|---|---|---|
| Engine Power: | 42KW | Rated Load: | 1.6TON |
| Operating Weight: | 5800KG | Front Shovel: | 1m3 |
| Excavator: | 0.18m3 | Max Digging Depth: | 4700mm |
| Max Dumping Height: | 4500mm Or 5200mm | ||
| High Light: | excavator backhoe loader,excavator and loader |
||

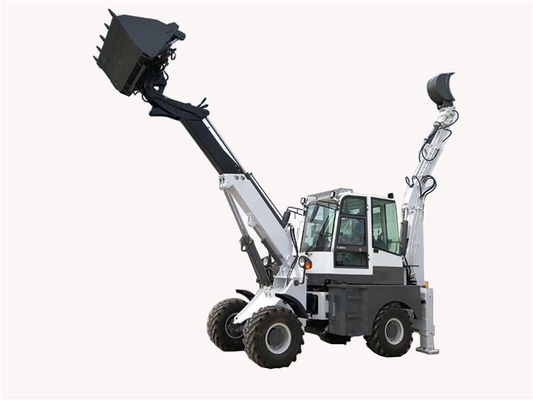

WY22-16 1.6ton 4WD telescopic backhoe loader dumping height 5.2m
WY22-16 backhoe loader standard main configuration :
▲ Rated load 1.6ton ,four wheel driving
▲with loader bucket 1m3 ,excavator 0.18m3
▲ Chinese Yunnei engine 42KW
▲ 50 drive axle(disc brakes), joystick operation
▲ tire model : 23.5/70-16
Product Description
1. China Backhoe Loader Introduction:
Backhoe loader WY22-16 is a new multi-fuction engineering machine which gathers the loaders and excavating in the integral machine.
It is a multifunction machine with exceptional performance,particularly applied for soil-stone,small or medium project.
2. China Backhoe Loader Advantage:
1) Advanced fashion front-end loading and back-end excavation structure,with reasonable and shape streamline design.
2) The driving cab designed is according with ergonmic and equipped with an air conditioner which keeps comfortable temperatures and wide vision,low noise and good ventilation,environment.
3) The acurated valve control take brake system with Hydraulically-actuated, wet disc brakes, which ensue the time braking so safer.
4) Advanced 3D graphics and ultrasonic testing of weld seam quality ensure the safet of driving and construction.
| WY22-16 Specification | ||
| Overall dimension | 6200x1750x2960mm | |
| Rated load | 1600kgs | |
| Operate weight | 4100kgs | |
| Bucket width | 1750mm | |
| Bucket capacity | 1m³ | |
| Dig bucket capacity | 0.18m³ | |
| Dumping height | 4500mm or 5200mm | |
| Digging depth | 4700mm | |
| Dumping distance | 1050mm | |
| Engine | Standard model | YUNNEI engine |
| Rated power | 42KW | |
| Pattern | In-line, water-cooling, 4 stroke, direct inject | |
| Storage battery | 80 A free-maintenance | |
| Optional |
EURO3/EPA XINCHAI engine EPA3/EPA4 YANMAR/CUMMINS/ KOHLER engine |
|
| Transmission System | Gearbox model | Hydraulic joystick |
| Axle | 50 drive axle (drum brake) | |
| Optional : wheel reduction axle (disc brake ) | ||
| Drive model | Four wheel drive | |
| Steering System | Steering angle | ±35° |
| Min. turning Radius | 4600mm | |
| Pattern | Articulated type full-hydraulic steering | |
| Service brake | Air over hydraulic, disc brake | |
| Parking brake | Hand operate | |
| Tyre | Model | 23.5/70-16 |
| Optional model | 12-16.5 wider tire | |
| MOQ | 1 set | |
| Package: | 2 sets into 1x40'HQ | |
