4 Wheel Drive Backhoe Loader2 Ton Load Original Japanese Cummins Engine

4 Wheel Drive Backhoe Loader2 Ton Load Original Japanese Cummins Engine
4 Wheel Drive Backhoe Loader2 Ton Load Original Japanese Cummins Engine 4 Wheel Drive Backhoe Loader2 Ton Load Original Japanese Cummins Engine 4 Wheel Drive Backhoe Loader2 Ton Load Original Japanese Cummins Engine 4 Wheel Drive Backhoe Loader2 Ton Load Original Japanese Cummins Engine

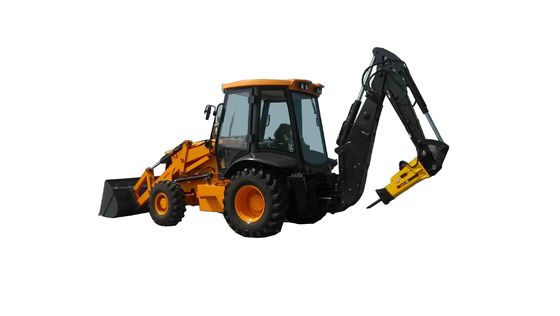

Large Image :  4 Wheel Drive Backhoe Loader2 Ton Load Original Japanese Cummins Engine

Product Details:
Place of Origin: China
Brand Name: Wenyang machinery
Certification: CE,SGS, ISO9001:2008
Model Number: WY850
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: 2 units per one 40HQ
Delivery Time: 25 days after receiving deposit
Supply Ability: 600 units per year
Detailed Product Description
Drive Model: 4 Wheel Drive Engine Brand: Cummins Engine
Engine Power: 60KW Rated Load: 2TON
Operating Weight: 7TON Loader Bucket: 1m3
Excavator: 0.3m3 Maximum Digging Depth(Backhoe: 4010mm
High Light:

backhoe wheel loader

,

excavator and loader

Chinese brand 4 wheel drive original Japanese cummins engine 2ton load backhoe loader



I. Features&Benefits





  1. It has low fuel consumption, low noise and strong power characteristics by using ORIGINAL CUMMINS ENGINE B3.3 (60kw), more efficient and economical
  2. Adopting main pump PERMCO brand -high quality, long service.
  3. JEIL Pilot joystick handler-imported from South Korea, ensure the accuracy and flexibility of each movement.
  4. International famous brand front and rear axles same to CARRARO helps steer easily, and the wet brake guarantee the driving and security easily. Efficient hydraulic torque converter provides ease and great comfort of operation.
  5. The super cab is designed with principle of ergonomics to provide the operator a low-noise environment, and possesses fine shock absorption.
  6. Hydraulic accessories option: 4-in-1 bucket, quick coupling plate, driller, forklift, quick hitch, hydraulic hammer, narrow bucket, tilting bucket.
  7. General information
    Total weight 7000 kg
    Overall dimension 7400x2170x2950 mm
    Turning radius 3500 mm
    Backhoe bucket capacity 0.2-0.3 cbm
    Loading bucket capacity 1.0 cbm
  8.
  9. Engine



    Model Imported CUMMINS (B3.3)
    No. of cylinders, type 4 cylinders in line, Turbo-charged. water cooled
    Bore and stroke 102x120 (mm)
    Displacement 3.261L
    Rated power/rotating speed 60 kw / 2200rpm
    Transmission system
    Hydraulic torque converter XN280
    Drive Method (2 x 4 or 4 x 4) 4x2 / 4x4
    Speed
    First forward 6 km/h / 12km/h
    Second forward 14.5 km/h / 29km/h
    First reverse 6 km/h /12km/h
    Second reverse 14.5 km/h / 29km/h
    Axle
    Axle type Hub reduction axle
    Front axle track 1620 mm
    Rear axel track 1340 mm
    Hydraulic system
    Hydraulic Motor PERMCO imported from America
    Model 3020
    Flow rate 80 L/min
    Working pressure 22.5 Mpa
    Pilot joystick handler JEIL brand (import from south korea)
    Multitandem valve RUILONG brand
    Pilot pump SKS
    Electrical system
    Voltage 12 V
    Alternator capacity 4 kw
    Battery capacity 210 Ah
    Front wheels (size & ply rating) 21.5-16
    Rear wheels (size & ply rating) 15-24
    Diesel fuel tank 125 L
    Hydraulic system fluid 132 L
    Backhoe part
    Backhoe bucket width 560 mm
    Backhoe bucket weight 185 kg
    Maximum outrigger width (extended) 2900 mm
    Minimum outrigger width (transport) 2020 mm
    Loader part
    Bucket width 2030 mm
    Bucket weight 350 kg





4 Wheel Drive Backhoe Loader2 Ton Load Original Japanese Cummins Engine 0
