|Rated Capacity:||1.5ton||Bucket Capacity:||0.8m3|
|Engine:||Chinese Yunei||Engine Power:||60KW|
|Max Lifting Height:||5100mm||Tire Model:||16/70-20|
telescopic fork truck,
telescopic boom forklift

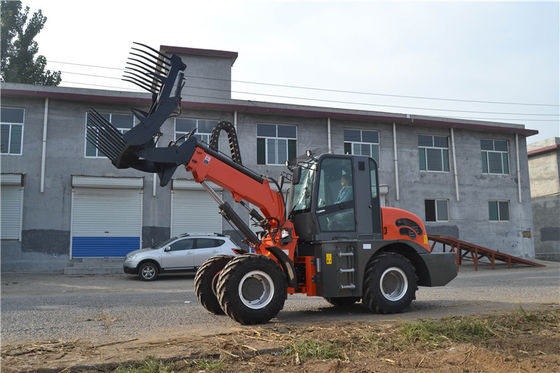

2ton 0.8m3 bucket telescopic boom wheel loader with max lifting height 5100mm
1.The telescopic boom which can reach 4.2m greatly increase it’s working scope.
2.The articulated structure and axle transmission design makes it powerful and has bette
pass through ability.
3.The seals, valve & joystick handle are famous oversea products which guarantee that it’s
a reliable long lasting machine.
4.Adjustable spring seat and optional air conditioner makes the operating more comfortable.
5.Wide view cabin and two entrance makes the operating convenient and safe.
6.Quick coupling system, mechanic joystick and buttons makes the operating easy and convenient.
7.The rear cover can be opened as a whole part just by your hands, which makes the maintenance
much more simple.
1.0 Engine Details
(1) Model: Chinese Yunnei engine
(2) Engine type:In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power:55KW or 60KW or 65KW
(4) Rated Speed:2400 r/p.min (rpm)
(5) Fuel Consumption ratio in standard working condition: 230g/kw.h
2.0 Transmission System
Hydraulic converter + drive shaft + axles
(1) Bucket Capacity: 0.8m³
(2) Bucket width: 1600-2000mm
(3) Bucket type:Heavy-duty bolt on teeth
(5) Rated Load: 2000kg including attachment
4.0 Overall Dimensions
(1) Overall Length: 6800mm
(2) Overall Height:2900mm
(3) Overall Width: 2050mm
(4) Max. lifting Height:5100mm
5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 5000mm
(3) Driving System: Hydraulic converter, four wheel drive
(5) Self levering
(6) Max. Dumping height: 3750mm
6.0 Brake System
(1) Service Brake:Four Wheel Chuck brake
(2) Parking Brake:Hand operated
8.0 Wheelbase: 2610mm
9.0 Track: 1570mm
10. 0 System pressure:16Mpa; Hydraulic output:70L/min
11. 0 Ovrall weight: 6300KG
