Compact Telescopic Forklift With Extendable Boom / Telescopic Fork Truck ISO CE

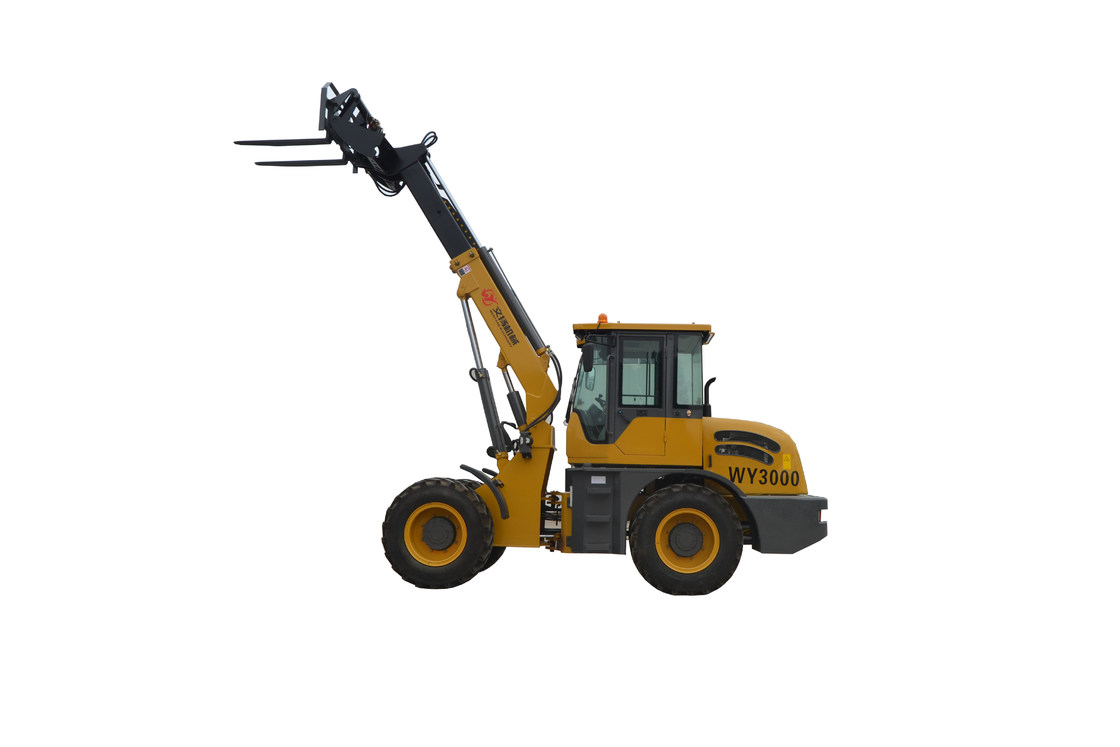

China WY3000 lifting farm machinery telescopic loader with fork

Performance and characteristic

1. Equipped with YUNNEI engine, optional YUCHAI or CUMMINS engine.

2. High quality self-made hydraulic gearbox and driving axle.

3. Choose best hydraulic components, pilot operation, easy and durable.

4. Strong and durable frame, have the automatic flat function in high place.

5. (Quick change )option attachment:wooden fork, pipe fork, pallet fork, grass fork, rock bucket, bigger bucket, snow bucket, mixing bucket etc.

6. Optional luxurious meter, air conditioner, back camera, more comfortable for driving.

7. High pressure and safer air assist disc brake braking system

8. According to clients request, customize higher dumping and longer arm products.

Specifications

1.0 Engine Details

(1) Model: YUNNEI Engine

(2) Engine Type:In-line arrangement, water-cooled, four-cycle diesel,turbocharged Engine

(3) Rated Power:92KW

(4) Rated Speed:2400 r/p.min (rpm)

(5)Optional Engine:CUMMINS engine(74.5KW)

2.0 Transmission System

Hydraulic converter + gearbox+drive shaft + hub reduction axles

3.0 Bucket

(1) Bucket Capacity: 1.5m³

(2) Bucket width: 2300mm

(3) Bucket type:Heavy-duty bolt on teeth

(4) Rated Load: 3000kg including attachment or bucket

4.0 Overall Dimensions

(1) Overall Length: 6860mm

(2) Overall Height:2860mm

(3) Overall Width: 2300mm

(4) Max lifting height : 5850mm

(5) Lifting to bucket hinge pin Height:5400mm

(6) Bucket Unloading Height:4650mm

5.0 Operating Specifications

(1) Steering System: Articulated frame with hydraulic power steering

(2) Min Turning Radius: 5800mm

(3) Driving System: Hydraulic converter, four wheel drive

(4) European quick coupling system

(5) Joystick control

6.0 Brake System

(1) Service Brake:Safer air assist disc brake braking system

(2) Parking Brake:Hand operated(Disc brakes)

7.0 Tire

(1) Model:16/70-24 (2)Width: 410mm(3) Diameter: 1175mm

(2) Optional Model:17.5-25 (2)Width: 440mm (3)Diameter: 1280mm

8.0 Wheelbase: 2430mm

9.0 Track: 1700mm

1. Operation weight:7100KG
