Product Details:
Payment & Shipping Terms:
|
| Weight: | 18TON | Type: | Crawler Excavator |
|---|---|---|---|
| Rotation: | 360° Rotation | Max Digging Depth: | 5975mm |
| Engine: | Cummins | Bucket: | 0.8m3 |
| High Light: | crawler hydraulic excavator,mini digger excavator |
||

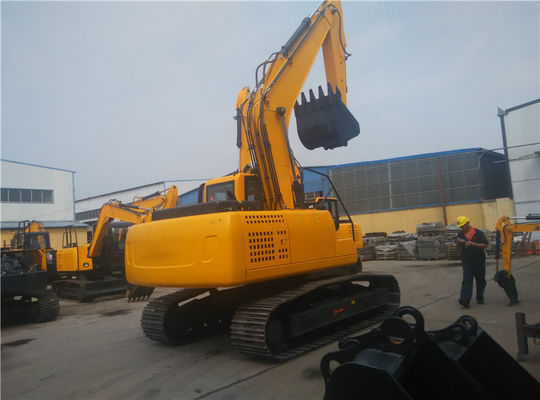

China WY180H 18ton crawler digger cralwer excavator with Cummins engine
>> MAIN CONFIGURATIONS:
▲The crawler excavator is an economic type excavator ,which matched CUMMINS engine with strong power and low noise and low consumption and environment protection.
▲Fitted imported brand main pump and valves .
▲ Adopted imported driving motor and swing motor.
▲ Adopted hydraulic pilot servo operation system and hydraulic oil radiator ensure the machine have high working efficiency .
▲The professional structural parts and working mechanism , ensure the machine has reliability and durability .
▲The breaking pipeline equipped improve the working performance .
▲Installed luxury full seal cabin with A/C and LCD display and LED lights etc.
▲ The humanized design , ensure the machine can comfortable operation and convenient maintenance
>> MAIN CONFIGURATIONS:
| NO | DESCRIPTION |
|
1 |
1-CUMMINS QSF3.8 engine , 93kw/2200rpm.national III, turbocharged 2-KAWASAKI brand pump 3-DOOSAN brand valves 4-Korea SUNJIN brand slewing motor 5-Korea DOOSAN brand driving motor 6-Luxury full seal cabin with A/C and LCD display and LED lights etc. 7-Hydraulic pilot servo operation system 8-Steel track :600mm 9-With broken pipeline system 10- Bucket capacity: 0.8m³ |
| 2 |
OPTIONAL ACCESSORIES: 1-AUGER 2-BREAKER 3-LOG GRAPPLE |
MAIN TECHNICAL PARAMETER
| MAIN SEPCIFICATIONS | |
| Bucket capacity | 0.8m³ |
| Swing speed | 0~12 rpm |
| Max. Grade ability | 30° |
| Max. Bucket digging force | 98KN |
| Max. Arm digging force | 68KN |
| Engine model | QSF3.8 |
| Power /Rotation speed | 93kw/2200rpm |
| Hydraulic system pressure | 32Mpa |
| Travel speed | 3~4.2km/h |
| Operation weight | 18000kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 8540mm*2720mm*2920mm |
| Height of cabin | 2920mm |
| Axle base(Track length on ground) | 3200mm |
| Track gauge | 2120mm |
| Min.Ground clearance | 480mm |
| Swing radius at tail | 2430mm |
| Width of track | 600mm |
| WORKING RANGE | |
| Max. Digging height | 9430mm |
| Max. Dumping height | 6960mm |
| Max. Digging depth | 5975mm |
| Max. Vertical digging depth | 5630mm |
| Max. Digging radius | 8985mm |
| Min .swing radius | 2725mm |
