| Weight: | 2000kg | Type: | Crawler Excavator |
|---|---|---|---|
| Rotation: | 360° Rotation | Max Digging Depth: | 2400mm |
| Engine: | KUBOTA | ||
| High Light: | crawler hydraulic excavator,mini digger excavator |
||
WY20H canopy Kubota engine mini crawler excavator with pipeline system
| NO | DESCRIPTION |
|
1 |

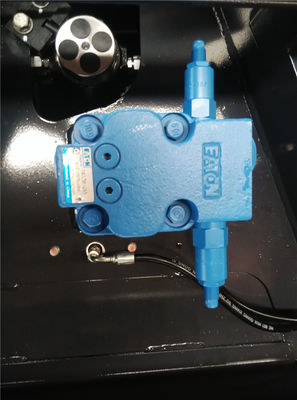

1-Japan KUBOTA (D1105) engine , 14.1kw/2000rpm, tier III , No turbocharged 2-CASAPPA brand pump and WALVOIL valves from Italy 3-EATON brand slewing motor 4-EATON brand driving motor 5-Open cabin(Canopy) 6-Hydraulic pilot servo operation system, two rods controlling the driving and steering 7-Steel track :230mm 8-With broken pipeline system 9- Bucket capacity: 0.07m³ 10-Boom can deflection to left or to right 11-Installed dozer blade |
| 2 |
OPTIONAL ACCESSORIES(According with your need): 1-Auger 2-Breaker 3-Log grapple |
| MAIN SEPCIFICATIONS | |
| Bucket capacity | 0.07m³ |
| Swing speed | 0~9 rpm |
| Max. gradeability | 35° |
| Max. Bucket digging force | 18KN |
| Max. Arm digging force | 11KN |
| Engine | KUBOTA , TIER III |
| Power /Rotation speed | 14.1kw/2000rpm |
| Hydraulic system pressure | 21.5Mpa |
| Travel speed | 3~4km/h |
| Machine weight | 2000kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 3555mm*990mm/1300mm*2290mm |
| Height of cabin | 2290mm |
| Axle base(Track length on ground) | 1230mm |
| Track gauge | 760mm |
| Min.Ground clearance | 150mm |
| Swing radius at tail | 650mm |
| Width of track | 230mm |
| WORKING RANGE | |
| Max. Digging height | 3700mm |
| Max. Dumping height | 2440mm |
| Max. Digging depth | 2400mm |
| Max. Vertical digging depth | 2025mm |
| Max. Digging radius | 4040mm |
| Min .swing radius | 1610mm |
| Max. Lifting height of blade | 240mm |
| Max. Cutting depth of blade | 270mm |
| Boom swing angle(Left) | 75° |
| Boom swing angle(Right) | 45° |
