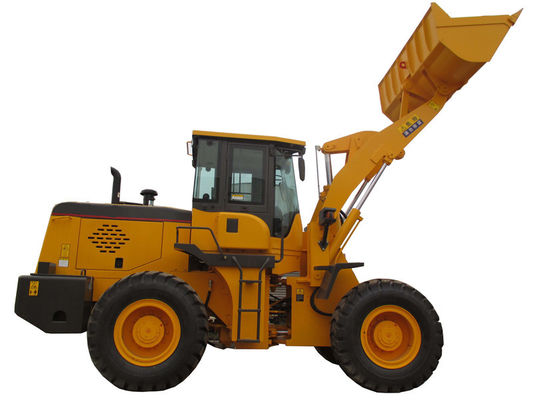

Deutz Engine Front End Shovel Loader WY936 3 Ton 1.7m3 1 Year Warranty

I'm Online Chat Now

Deutz Engine Front End Shovel Loader WY936 3 Ton 1.7m3 1 Year Warranty

Deutz Engine Front End Shovel Loader WY936 3 Ton 1.7m3 1 Year Warranty
Deutz Engine Front End Shovel Loader WY936 3 Ton 1.7m3 1 Year Warranty Deutz Engine Front End Shovel Loader WY936 3 Ton 1.7m3 1 Year Warranty Deutz Engine Front End Shovel Loader WY936 3 Ton 1.7m3 1 Year Warranty Deutz Engine Front End Shovel Loader WY936 3 Ton 1.7m3 1 Year Warranty Deutz Engine Front End Shovel Loader WY936 3 Ton 1.7m3 1 Year Warranty Deutz Engine Front End Shovel Loader WY936 3 Ton 1.7m3 1 Year Warranty

Large Image :  Deutz Engine Front End Shovel Loader WY936 3 Ton 1.7m3 1 Year Warranty

Product Details:
Place of Origin: China
Brand Name: Wenyang machinery
Certification: ISO 9001-2008
Model Number: WY936
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: 1 unit /40HQ
Delivery Time: 20 days after receiving deposit
Detailed Product Description
Rated Capacity: 3TON Bucket Capacity: 1.7m3
If OEM: Yes Max Dumping Height: 3400mm
Engine: Deutz Engine Warranty: 1 Year
Tranportation: 1 X 40HQ
High Light:

articulated front end loader

,

front end shovel loader

China factory WY936 3ton 1.7m3 deutz engine shovel loader for sale



1. maximum dumping height is 3400mm , Articulated frame with small turning radius makes the wheel loader flexible and convenient to operate.

2. Cab with broad view ,noise-isolation and vibration absorber meets all kinds of operation ,which can be dismantled for large space .Radio with MP3 function and speaker , the joystick control system (optional ) ensure easy operation and more comfortable.

3. Optional spare parts can be chosen by users ,such as the planetary transmission , the air condition ,heat system ,joystick ,longer lifting arms and so on.

4. Optional attachments :

Quick hitch for special needs such as the log grapple ,fork ,snow blade ,grass fork ,enlarged bucket etc .



Model WY936
Operating weight 10,100 kg
Rated load 3,000 kg
Bucket capacity 1.7m³
Engine model Deutz WP6G125E22
Rated engine power 92kw
Rated rotate speed 2200r/min
Maximum torque 500N.m
Breakout force 98KN
Driving speed
Forward Ⅰ 0-8km/h
Forward Ⅱ 0-13.5km/h
Forward Ⅲ 0-25km/h
Forward IV 0-36km/h
Reverse Ⅰ 0-9.5km/h
Reverse Ⅱ 0-30km/h
Grade ability 28°
Overall length 7200mm
Overall width 2350mm
Overall height 3200mm
Wheel base 2850mm
Track base 1800mm
Minimum ground clearance 450mm
Maximum dumping height 3400mm
Maximum dumping reach 1290mm
Raise time ≤6.8s
Total ≤12.5s
Fuel Tank 180L
Tyre type 17.5-25



Deutz Engine Front End Shovel Loader WY936 3 Ton 1.7m3 1 Year Warranty 0

Deutz Engine Front End Shovel Loader WY936 3 Ton 1.7m3 1 Year Warranty 1

Deutz Engine Front End Shovel Loader WY936 3 Ton 1.7m3 1 Year Warranty 2
