|Rotation:||360° Rotation||Max Digging Depth:||3898mm|
crawler hydraulic excavator,
agriculture digging machine

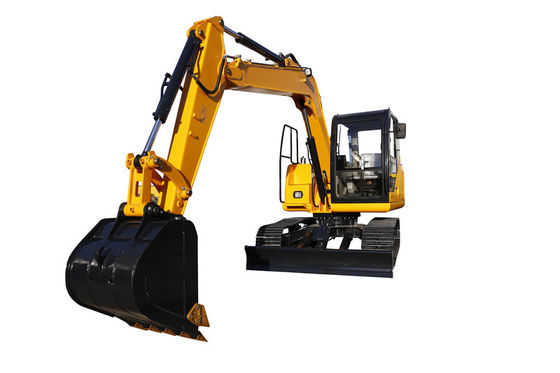

China WY75H 7.5ton crawler digger cralwer excavator with Yuchai engine
>> MAIN FEATURES:
▲The crawler excavator is an economic type excavator ,which matched YUCHAI engine with strong power and low oil consumption and environment protection.
▲Fitted china famous brand main pump and valves .
▲ Adopted imported driving motor and swing motor.
▲ Adopted hydraulic pilot servo operation system and hydraulic oil radiator ,ensure the machine have high working efficiency .
▲The professional structural parts and working mechanism , ensure the machine has reliability and durability .
▲The breaking pipeline equipped improve the working performance .
▲Installed luxury full seal cabin with A/C and LCD display LED lights etc.
▲ The humanized design , ensure the machine can comfortable operation and convenient maintenance.
>> MAIN CONFIGURATION:
1-YUCHAI engine,48kw/2200rpm, tier II/tier III, turbocharged
2-China famous brand pump and valves
3-Imported international brand slewing motor and driving motor
4-Luxury full seal cabin with A/C and LCD display and LED lights etc.
5-Hydraulic pilot servo operation system
6-Steel track :450mm
7-With broken pipeline system
8- Bucket capacity: 0.28m³
9-Installed dozer blade
10-Travel speed: high speed and low speed
MAIN TECHNICAL PARAMETER
|Swing speed||0~11 rpm|
|Max. Bucket digging force||56KN|
|Max. Arm digging force||38KN|
|Power /Rotation speed||48kw/2200rpm|
|Hydraulic system pressure||27Mpa|
|Overall dimension (L*W*H)||6054mm*2216mm*2672mm|
|Height of cabin||2672mm|
|Axle base(Track length on ground)||2209mm|
|Swing radius at tail||1730mm|
|Width of track||450mm|
|Max. Digging height||7023mm|
|Max. Dumping height||5195mm|
|Max. Digging depth||3898mm|
|Max. Vertical digging depth||2968mm|
|Max. Digging radius||6182mm|
|Min .swing radius||1740mm|
|Max. Lifting height of blade||382mm|
|Max. Cutting depth of blade||332mm|
